CRAWLER SYSTEM DN100 - DN2000

CRAWLER SYSTEM DN100 - DN2000

Our systems are robust, built to survive the harsh environments they are used in.

PORTABLE/INTEGRATED 2-IN-1 SYSTEMS.

Our integrated systems can be easily removed from a vehicle and become portable. This is sure to be appreciated by crews when it is not possible to drive to the inspection site.

COMPATIBILITY TODAY AND TOMORROW

The items we make are mutually compatible. It is even possible to connect a push camera to the control unit of a crawler system. The heads are interchangeable on all crawlers.

Our new systems are backwards compatible with control units purchased from us in the past. They will also work with any new equipment we produce to meet future requirements.

BASIC COMPONENTS CRAWLERS SYSTEM

CRAWLERS

CRAWLERS

HEADS

HEADS

CONTROL UNIT

CONTROL UNIT

CABLE DRUM

CABLE DRUM

SOFTWARE

SOFTWARE

CRAWLERS and RAFT

CRAWLERS and RAFT

The crawler is the carrier of the camera head. The choice of crawler for the camera head depends on the intended use in the pipeline. We will gladly assist you to make the right choice.

RAFT

 CRAWLERS, RAFT AND OPTIONS AVAILABLE

KV 100 RV 125 RN 305 RV 305 RN 315 RV 315 RAFT
DN 100 - 300 * *
DN 150 - 2000 * *
DN 200 - 2000 * *
Rear-view camera * * * * *
Measurement of tilt * * * * * *
Connector for horizontal/vertical movement * * * * *
Steerable * * *
Automatic stabilization * * *
Detection of groundwater inflow * * * *
Tilting head bracket * *
Electric lifting mechanism for heads OPTION OPTION OPTION OPTION
For lateral cameras * * * *
Additional lighting * * * * *
Suitable for flooded pipes *

ACCESSORIES

ADDITIONAL WHEELS
for the KV 100 crawler
+ adapter
For the RV 125 crawlers
For the RN/RV 305 crawlers
For the RN/RV 315 crawlers

ADDITIONAL WHEELS

LIFTING FORK (4 types of fork exist, the choice of which depends on the width of the crawler)
For the KV 100 crawler
For the RV 125 crawler
For the RN/RV 305 crawlers
For the RN/RV 315 crawlers

LIFTING FORK

ROLLER FOR CABLE
Aids cable movement over the inner edge of a shaft.

ROLLER FOR CABLE

SUPPORT WHEEL FOR OVAL PIPES

This wheel is attached to the frame of the crawler and serves to keep the camera system at the right level. The width is adjustable to suit different sizes of pipe. Crawlers fitted with the electric lifting mechanism allow for full adjustment of the wheel from the operator’s position. Tests show it is the most effective wheel for egg-shaped pipes as it can completely traverse entire sections.

SUPPORT WHEEL FOR OVAL PIPES

CAMERA HEADS (use for push and crawler systems too)

Choose the one that best suits the intended purpose.

VH 33
RTH 34
RTH 112i
RTH 112HD
VH 33 RTH 34 RTH 112i RTH 112HD

A HEAD APPLICABLE FOR:

- push cameras for DN50 – DN300 pipes
- a satellite camera (no adapter required)
Easy to swap out, due to use of waterproof nuts on the head.

A HEAD APPLICABLE FOR:

- push cameras for DN70 – DN400 pipes
- all crawlers (some require adapters)
- a satellite camera (no adapter required)
Easy to swap out, due to use of waterproof nuts on the head.

A HEAD APPLICABLE FOR:

- all crawlers
- for DN125 - DN2000
Easy to swap out, due to use of waterproof nuts on the head.

A HEAD APPLICABLE FOR:

- all crawlers
- for DN150 - DN2000
Easy to swap out, due to use of waterproof nuts on the head.

FEATURES:

- diameter 42mm
- automatic self-levelling
- lights LED 1080 lm

FEATURES:

- diameter 62mm
- automatic self-levelling
- lights LED 1440 lm
- automatic return to the default position

FEATURES:

- rotation through 270° / 360°
- continuous regulation of rotation speed
- return to default position
- indicator of viewed direction in the pipe
- connector for connecting to crawlers
- head pressurized by the crawler
- lights LED 2160 lm

FEATURES:

- rotation through 270° / 360°
- continuous regulation of rotation speed
- return to default position
- indicator of viewed direction in the pipe
- connector for connecting to crawlers
- head pressurized by the crawler
- lights LED 2160 lm

LENS:

- manual focus

LENS:

- motorized focus

LENS:

- AUTO-FOCUS/MOTORIZED
- ZOOM 10:1 optical

LENS:

- AUTO-FOCUS/MOTORIZED
- ZOOM 10:1 optical

CAMERA CHIP:

- 0,44 MP
- 530 line resolution
- sensitivity 0,1 lx

CAMERA CHIP:

- 0,44 MP
- 530 line resolution
- sensitivity 0,1 lx

CAMERA CHIP:

- 0,44 MP
- 530 line resolution
- sensitivity 0,1 lx
- automatic / manual shutter

CAMERA CHIP:

- 2 MP (1920 x 1080 px)
- 60 Fps
- sensitivity 0,1 lx
- automatic / manual shutter

OPTION ACCESSORIES:

- 33Khz transmitter for locating function

OPTION ACCESSORIES:

- 33Khz transmitter for locating function

OPTION ACCESSORIES:

- Laser for measuring DN220 – DN800 pipes
- 33Khz transmitter for locating function
- laser for measuring the widths of cracks

OPTION ACCESSORIES:

- Laser for measuring DN220 – DN800 pipes
- 33Khz transmitter for locating function
- laser for measuring the widths of cracks


CONTROL UNIT

CONTROL UNIT

A unique aspect of the control unit is its duality – it is portable when it needs to be but it can also be docked and become fully integrated in an inspection van by fixing it under the workbench with quick-release clamps mounted alongside connections to peripherals.

CONTROL UNIT

CABLE DRUM and CABLE

A universal electric reel, it is possible to fix it in place in a vehicle or remove it for mobile use as required.

Description and accessories:
● electric reel drive
● automatic cable straightener
● automatic synchronization of reel and crawler movements
● adjustable brake
● handle to reel manually
● cable lengths from 150 to 300 m
● NEW extra durable cable
● electronic measurement of distance

CABLE DRUM and CABLE
CABLE DRUM and CABLE

SOFTWARE - INTUITIVE AND USER-FRIENDLY

SOFTWARE

Our software produces graphical reports on inspected sections and has the following functionality:
- Shows graphs with angles of tilt
- Measures ovality via comparison with an assistance ring on the display
- Laser measurement of ovality & widths of cracks and gaps
- Measures sections via pressure testing
- Batch printing of documents
- Graphical ring indicating the direction of the camera head
- Operates to ATV and EN13508-2 standards

GIS
GIS

Measuring with a laser allows distances to be calculated (e.g. levels of water in caverns). The software features an Isybau module to facilitate easy import into a GIS system, the development of which we have contributed to significantly.

The software comes with a viewer that provides a clear overview (see the image below). Apart from viewing a video feed, users have the option to take screenshots at any time, print reports and produce charts detailing tilt and groundwater inflow. An open license is granted for normal use of the viewer.

SOFTWARE - IKAM

EXTENSION TO A CRAWLER SYSTEM

CONTINUOUS MEASUREMENT OF OVALITY

CONTINUOUS MEASUREMENT OF OVALITY

DETECTING THE INFLOW OF GROUNDWATER

DETECTING THE INFLOW OF GROUNDWATER

LOCATING FUNCTION

LOCATING FUNCTION

EXTENSION FOR LATERAL SYSTEME

EXTENSION FOR LATERAL SYSTEME

INSPECTION VAN

INSPECTION VAN

CONTINUOUS MEASUREMENT OF OVALITY

CONTINUOUS MEASUREMENT OF OVALITY

The MOL 500 continuous laser is designed for the RV / RN 305 and RV / RN 315 crawlers. It sits between the camera head and crawler. Values for ovality are gauged when the system is moving, resulting a graph which plots ovality over two axes.


DETECTING THE INFLOW OF GROUNDWATER

DETECTING THE INFLOW OF GROUNDWATER

The ability to detect the inflow of groundwater was an innovation developed by ZIKMUND and unique to us. When a camera reaches a flooded area, the source of it is often uncertain – it could either be water seepage or have run down to the site in question. Our systems can electronically determine whether it stems from inflow through a broken pipe or not. Results are recorded in a graph that reveals the part of the pipe responsible for the otherwise invisible inflow.

If a sewer is breached by groundwater, wastewater treatment plants are faced with an undesirable increase in the volume of water being purified. Detecting this kind of unwanted inflow is crucial to optimizing conditions for such facilities.


LOCATING FUNCTION

LOCATING FUNCTION

The locating function determines the position of pipes from ground level via a transmitter incorporated in the camera head. This means the operator is able to monitor the progress of the unit through the pipe, a process made possible by a locator which registers its position and depth.

An example of a system suitable for locating pipes:
1/ A push camera with an RTH 34 head
2/ All crawlers with the RTH 34, RTH 112 or 112i heads


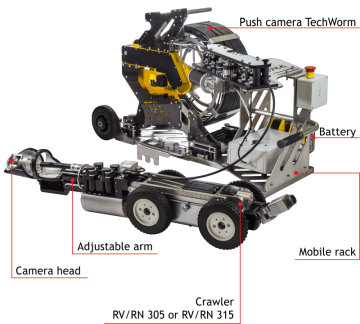

CRAWLER + TECHWORM + ADJUSTABLE ARM = LATERAL SYSTEM

LATERAL SYSTEM

EXTREMELY ECONOMICAL SOLUTION

If you have a crawler that you use for inspections, you can get the lateral system by purchasing a positioning arm, a transporting trolley and a push camera, which you can also use for inspections of small profiles.

So the price of the lateral system also includes a crawler camera system and a TechWorm push camera system. We are thus saving your funds compared to others.

GREAT PORTABLE

GREAT PORTABLE

WITH PUSH CAMERA

WITH PUSH CAMERA

COMMUNICATION VIA WIFI

COMMUNICATION VIA WIFI
